Commercial Aluminum Wall Flagpole
Info

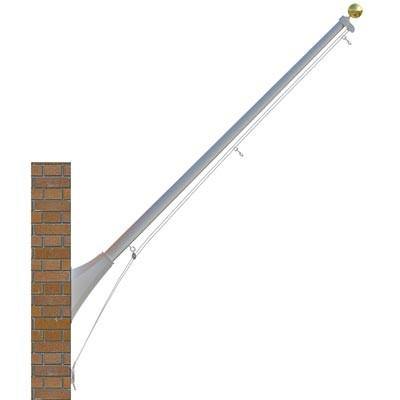

Commercial Grade Aluminum Wall Flagpole
The Commercial Grade Aluminum Wall Flagpole offers a wide variety of wall mounted flagpole designs ranging in lengths from 8" to 16".
The flagpole and mount come with your standard 45° design but we also offer 30° and 60° options for customers with specific architectural design needs.
To place an order for a 30° or 60° flagpole please contact us by calling 1-800-314-2392.
Specs
Product Specifications

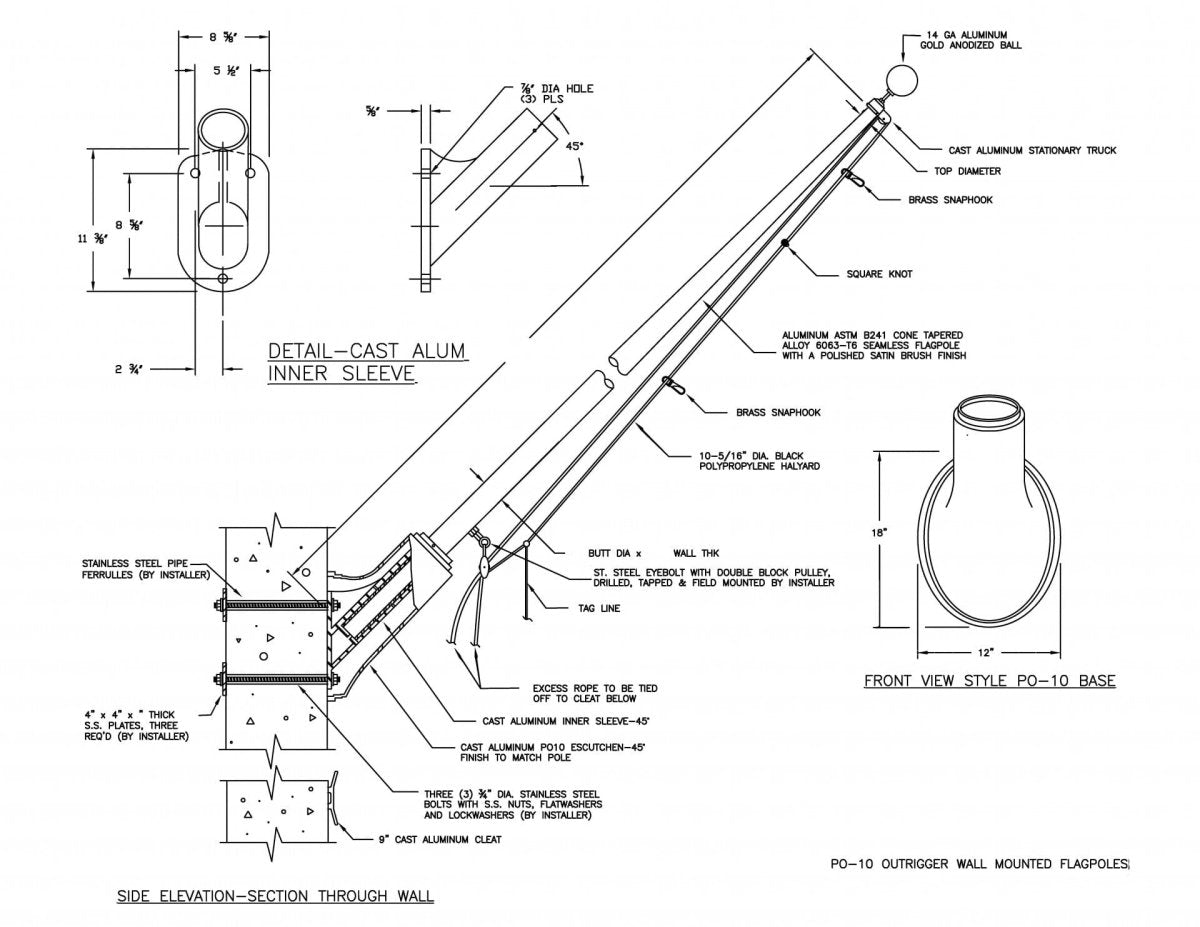

- External Single Stationary
- Rope Halyard
- Gold Anodized Aluminum Ball
- Cast Aluminum Single Stationary Truck Assembly with Aluminum Pulley
- Complete External Halyard Assembly
- Rope Halyard #10 Polypropylene
- Two Heavy-Duty Stainless Steel Swivel Snap Hooks
- Two Neoprene Snap Hook Covers
- 9" Heavy-Duty Aluminum Cleat
- Eyebolt and Fixed Double Pulley
- Choice of Aluminum Wall Mounts (Anchorage Kits Sold Separately)
Product Sizing Information
Model Number | Height | Butt Diameter | Top Diameter | Wall Thickness | Weight |
---|---|---|---|---|---|
OSS8B4X-0104 | 8' | 4" | 2.5" | .125" | 40 LBS |
OSS10B4X-0104 | 10' | 4" | 2.5" | .125" | 45 LBS |
OSS14C4X-0104 | 14' | 4" | 2.5" | .156" | 51 LBS |
OSS18D4X-0104 | 18' | 4" | 2.5" | .188" | 67 LBS |
